Product introduction

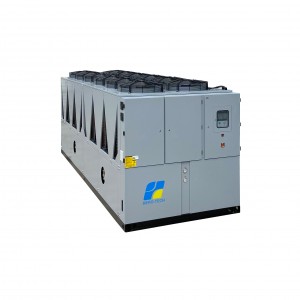

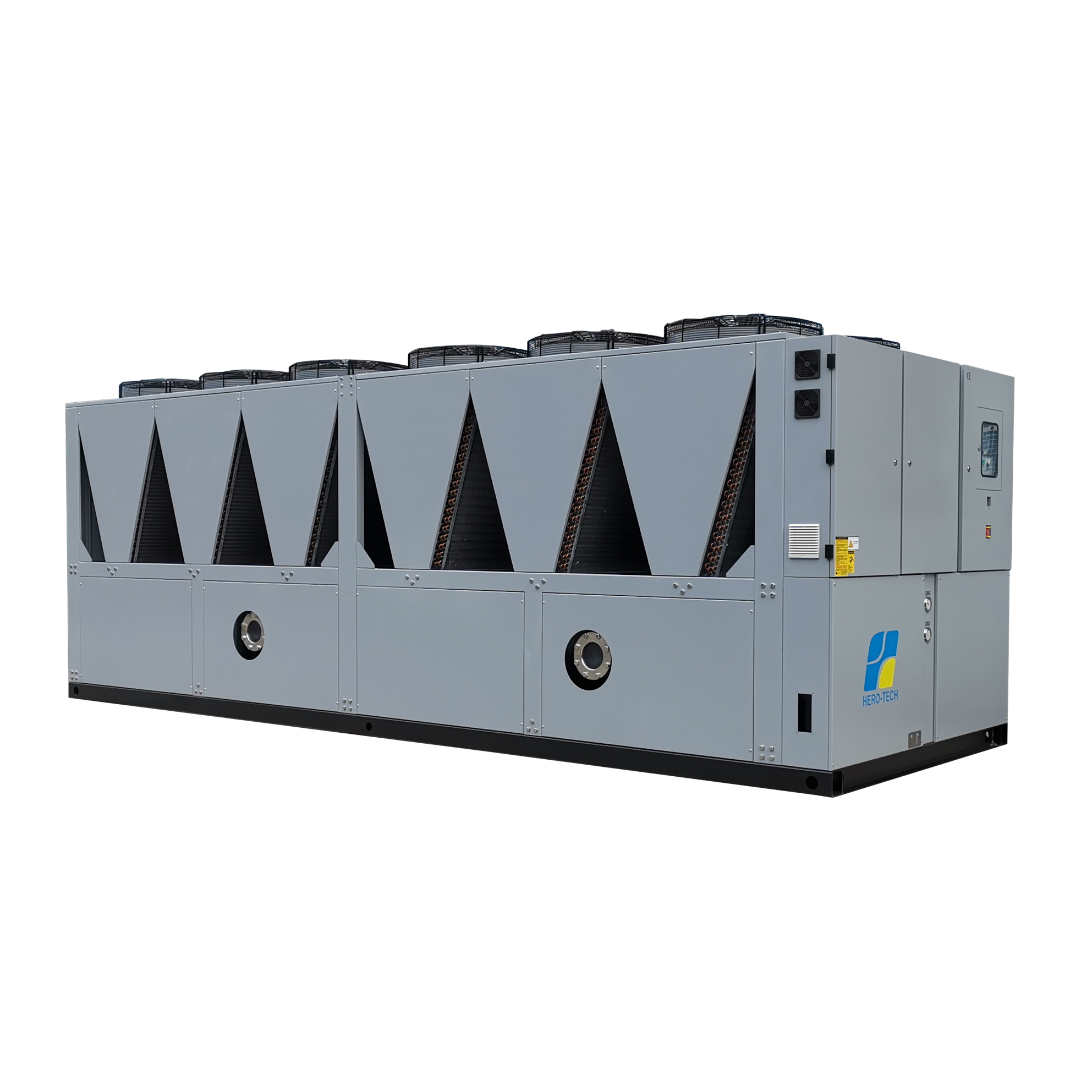

HTS-A series industrial chiller is mainly applied in Plastic & Rubber industry; It can accurately control the molding temperature and shorten the molding cycle, increase the product quality and improve the production efficiency. They are also widely used in Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military.
Not all chillers are created equal. For efficient cooling and long-lasting performance, you can depend on HERO-TECH of Cooling Products for all your cooling needs.
HERO-TECH always present qualified,best and solution based service.
Application
Dependable, versatile, high-efficiency cooling.
HERO-TECH chillers deliver value to a wide variety of applications with enhanced energy-efficiency options.
Medium and large scale industrial cooling
Central air conditioning system
Cold room, thermostatic chamber
Design features
Well Known Brand Compressor
Unit adopts Germany BITZER or Taiwan HANBELL brand semi-hermetic screw compressor. The latest 5 to 6 patented screw rotor profile with excellent efficiency.
Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running.
Most advanced patented highest precision manufacturing process.
Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor.
Wide range of refrigerant for option, including R134A, R407c and R22(R404A, R507c upon request).
Microprogramming Control System
Industrial PLC centralized control combined with compressor capacity control system, precisely monitor.
Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor over temperature, oil differential, flow switch, start up latency.
Optional operation language, menu leading, unit running state easy to adjust.
Easy Installation, Reliable Running
Closely stepped start-up, minimize impact to electricity.
Steady and safe running, low vibration, easy for installation.
Compact structure, less space demand and light in weight, easy for transport and installation.
Completely wired, inspected and tested pre-delivery, saving installation time and cost.
·W-shape aluminum fin type condenser, assuring adequate heat exchanging area within smaller unit size
·High efficient evaporator with internal thread copper tube.
·Large air volume axial fan with metal blades. Motor separated from net-cover, fixed on exhaust port by metal
·Siemens PLC control, LCD touch screen interface.
·Standard design charged R22, CFC Free R407C, R410A, R404A, R134A for option.
·380V-415V/50Hz 3pH for standard design. Different design on customers’ request.
Comprehensive service
-Processional Team: Engineering team with average 15 years of experience in industrial refrigeration, sales team with average 7 years of experience, Service team with average 10 years of experience.
-Customized solution always supplied according to requirements.
-3 steps quality control: incoming quality control, process quality control, outgoing quality control.
-12 months guarantee for all products. Within warranty, any problem caused by defects of chiller itself, service offered till the problem solved.
Five advantages of HERO-TECH
•Brand strength ：We are the professional and top supplier of industrial chiller with 20 years of experience.
•Professional Guidance：Professional and experienced technician & sales team service to the oversea market, offering professional solution according to requirements.
•Fast delivery ：1/2hp to 50hp air-cooled chillers in stock for immediately delivery.
•Stable staffs ：Stable staffs can ensure stable and high quality productivity. To ensure high quality service and efficient after-sales support.
•Golden service ：Service call response within 1 hour, solution offered within 4hrs, and own oversea installation and maintenance team.
| Model(HTS-***) |
40A |
50A |
60A |
75A |
85A |
100A |
120A |
150A |
||
| Nominal cooling capacity |
7℃ |
Kcal/h |
96148 |
126248 |
135622 |
181460 |
213796 |
251464 |
294550 |
373842 |
|
kw |
111.8 |
146.8 |
157.7 |
211.0 |
248.6 |
292.4 |
342.5 |
434.7 |
||
|
12℃ |
Kcal/h |
115412 |
151532 |
162798 |
217752 |
256624 |
301860 |
353460 |
448748 |
|
|
kw |
134.2 |
176.2 |
189.3 |
253.2 |
298.4 |
351.0 |
411.0 |
521.8 |
||
| Input power |
kw |
36.1 |
44.3 |
51.2 |
67 |
76.3 |
88.3 |
105.5 |
131.6 |
|
|
Power source |
3PH 380V~415V 50HZ/60HZ |
|||||||||
| Refrigerant | Type |
R22 |
||||||||
| Charge |
kg |
28 |
35 |
42 |
52 |
60 |
70 |
84 |
105 |
|
| Control |
Thermostatic expansion valve |
|||||||||
| Compressor | Type |
Semi-hermermetic screw |
||||||||
| power |
kw |
33.7 |
41.9 |
46.4 |
60.6 |
69.9 |
80.3 |
95.9 |
118.8 |
|
| Start mode |
Y-△ |
|||||||||
| Capacity control |
％ |
0-25-50-75-100 |
||||||||
| Evaporator | Type |
Shell and tube( ss plate heat exchanger) |
||||||||
| Chilled water volume |
m³/h |
18 |
23.6 |
25.7 |
34.4 |
40.5 |
46.4 |
55 |
69.5 |
|
| Water pressure drop |
kPa |
32 |
35 |
38 |
42 |
45 |
43 |
43.3 |
41 |
|
| Pipe connection |
inch |
3 |
3 |
3 |
3 |
3 |
4 |
4 |
5 |
|
| Condenser | Type |
air cooled type high efficiency finned copper tube |
||||||||
| Fan | Type |
Big volume & low noise axial fan |
||||||||
| Power |
kw |
0.6*4 |
0.6*4 |
0.8*6 |
0.8*8 |
0.8*8 |
0.8*10 |
0.8*12 |
0.8*16 |
|
| Air volume |
m³/h |
40000 |
50000 |
60000 |
80000 |
90000 |
100000 |
116000 |
135000 |
|
| Safety devices |
Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection |
|||||||||
| Dimension | Length |
mm |
2180 |
2350 |
2650 |
3310 |
3470 |
4090 |
4870 |
6450 |
| Width |
mm |
1800 |
1800 |
1800 |
1800 |
1800 |
1800 |
1800 |
1800 |
|
| Height |
mm |
2050 |
2050 |
2050 |
2243 |
2243 |
2243 |
2243 |
2243 |
|
| Net weight |
kg |
1300 |
1600 |
1900 |
2350 |
2550 |
2800 |
2950 |
3200 |
|
| Running weight |
kg |
1450 |
1750 |
2100 |
2550 |
2800 |
3050 |
3250 |
3500 |
|
The above specification are according to the following design conditions:
Model bigger than HTS-170AD is modular design. We reserve the right to modify the specifications without further notice. |
||||||||||
| Model(HTS-***) |
80AD |
100AD |
120AD |
150AD |
170AD |
200AD |
240AD |
300AD |
||
| Nominal cooling capacity |
7℃ |
Kcal/h |
192296 |
252496 |
271244 |
362920 |
427592 |
502928 |
589100 |
747684 |
|
kw |
223.6 |
293.6 |
315.4 |
422.0 |
497.2 |
584.8 |
685.0 |
869.4 |
||
|
12℃ |
Kcal/h |
230824 |
303064 |
325596 |
435504 |
513248 |
603720 |
706920 |
897496 |
|
|
kw |
268.4 |
352.4 |
378.6 |
506.4 |
596.8 |
702.0 |
822.0 |
1043.6 |
||
| Input power |
kw |
73.8 |
93.4 |
102.4 |
134.0 |
152.6 |
176.6 |
211.0 |
263.2 |
|
| Power source |
3PH 380V~415V 50HZ/60HZ |
|||||||||
| Refrigerant | Type |
R22 |
||||||||
| Charge |
kg |
28*2 |
35*2 |
42*2 |
52*2 |
60*2 |
70*2 |
84*2 |
105*2 |
|
| Control |
Thermostatic expansion valve |
|||||||||
| Compressor | Type |
Semi-hermermetic screw |
||||||||
| power |
kw |
33.7*2 |
41.9*2 |
46.4*2 |
60.6*2 |
69.9*2 |
80.3*2 |
95.9*2 |
118.8*2 |
|
| Start mode |
Y-△ |
|||||||||
| Capacity control |
％ |
0-25-50-75-100 |
||||||||
| Evaporator | Type |
Shell and tube( ss plate heat exchanger) |
||||||||
|
Chilled water volume |
m³/h |
35.6 |
46.8 |
50.8 |
68 |
80 |
92.8 |
110.6 |
139 |
|
|
Water pressure drop |
kPa |
45 |
43 |
43 |
41 |
42 |
45 |
42 |
46 |
|
| Pipe connection |
inch |
3 |
4 |
4 |
5 |
6 |
6 |
8 |
8 |
|
| Condenser | Type |
air cooled type high efficiency finned copper tube |
||||||||
| Fan | Type |
Big volume & low noise axial fan |
||||||||
| Power |
kw |
0.8*8 |
0.8*12 |
0.8*12 |
0.8*16 |
0.8*16 |
0.8*20 |
0.8*24 |
0.8*32 |
|
| Air volume |
m³/h |
80000 |
1000000 |
116000 |
135000 |
165000 |
200000 |
236000 |
276000 |
|
| Safety devices |
Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection |
|||||||||
| Dimension | Length |
mm |
3310 |
4570 |
4870 |
6450 |
3470*2 |
4090*2 |
5650*2 |
6450*2 |
| Width |
mm |
1800 |
1800 |
1800 |
1800 |
1800*2 |
1800*2 |
1800*2 |
1800*2 |
|
| Height |
mm |
2243 |
2243 |
2243 |
2243 |
2243*2 |
2243*2 |
2243*2 |
2243*2 |
|
| Net weight |
kg |
2500 |
2950 |
3350 |
4100 |
4350 |
4750 |
5200 |
5700 |
|
| Running weight |
kg |
2800 |
3250 |
3750 |
4500 |
4850 |
5250 |
5800 |
6300 |
|
The above specification are according to the following design conditions:
Model bigger than HTS-170AD is modular design. We reserve the right to modify the specifications without further notice. |
||||||||||
Q1: Could you help us to recommend the model for our project?
A1: Yes, we have engineer to check the details and choose the correct model for you. Based on the following:
1) Cooling capacity;
2) If you don’t know, you can offer the flow rate to your machine, temperature in and temperature out from your using part;
3) Environment temperature;
4) Refrigerant type, R22, R407c or other, pls clarify;
5) Voltage;
6) Application industry;
7) Pump flow and pressure requirements;
8) Any other special requirements.
Q2: How to ensure your product with good quality?
A2: All our products with CE certificate and our company Strictly comply with ISO900 quality management system. We use the worldwide famous brand accessories, such as DANFOSS, COPELAND, SANYO, BITZER, HANBELL compressors, Schneider electrical components, DANFOSS/EMERSON refrigeration components.
The units will be fully tested before package and The packing will be carefully checked.
Q3: What’s the warranty?
A3: 1 year warranty for all parts; Whole life labor free!
Q4: Are you a manufacturer?
A4: Yes, we have more than 23 years in industrial refrigeration business. Our factory located in Shenzhen; Welcome to visit us at anytime. Also have patent on the chillers’ design.
